Products & Technologies
DPF-SCR
DPF + SCR for MDV and HDV CN-2, CN-3
Applicable range CN-2(MDV) : 3,000~8,000cc / ~255ps(170kW) CN-3(HDV) : 8,000~17,000cc / ~460ps(330kW) Passive DPF + Urea SCR (Catalyzed filter + catalytic reduction + urea injection module)DPF + SCR system reduces both particulate matter and NOx
Special features
- Combined Passive DPF and Urea-SCR system
- The NOx of exhaust gas is converted to N2 and H2O by urea injection and catalytic reduction process
- Various applications and customized design is available by using self-developed pump module and control logic
- Customized modification is possible for any vehicles by replacement of components

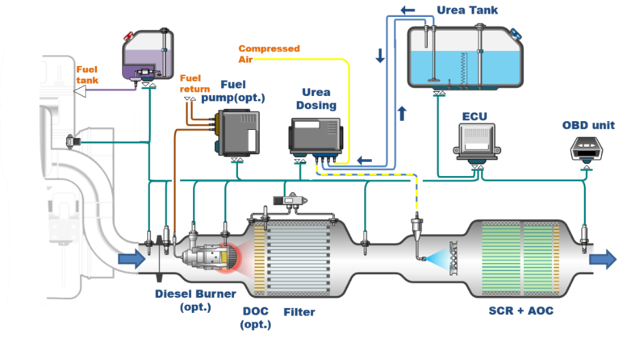

System Layout

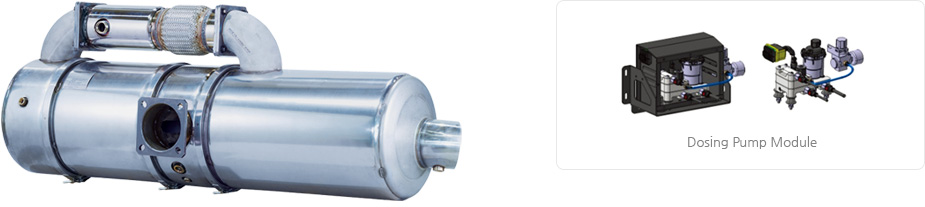

Optional product packages according to the needs of customer
- ① DPF + SCR
- ② SCR

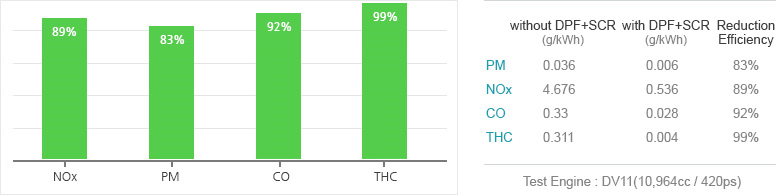

Performance

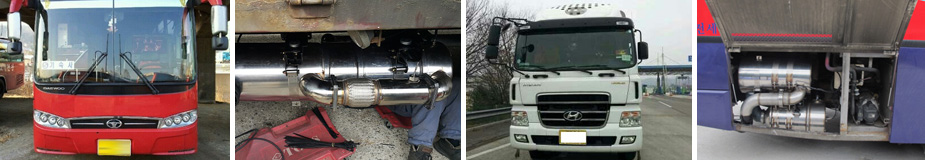

Examples
